C9606R-48Y24C-BN-A - Cisco Catalyst 9600 Switch Bundle - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: C9606R-48Y24C-BN-A
Condition: REFURBISHED
Availability: Call For Availability

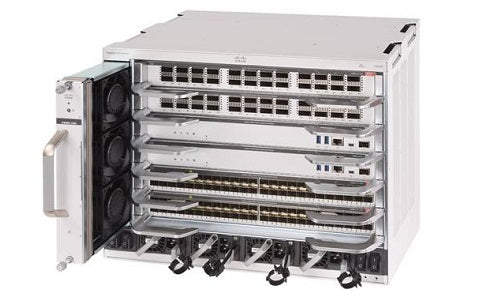

Cisco Catalyst 9606R Switch bundle - L3 - with 24 x 100 Gigabit Ethernet and 48 x 25 Gigabit Ethernet line cards - includes Cisco Catalyst 9600 DNA Advantage Term License - rack-mountable
Catalyst 9600 Series Switches provide security features that protects the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9600 Series switches give you what you need now with investment protection on future innovations.
As the industry's first purpose-built 40 and 100 Gigabit Ethernet line of modular switches targeted for the enterprise campus, Catalyst 9600 Series switches deliver unmatched table scale (MAC, route, and Access Control List [ACL]) and buffering for enterprise applications. The Cisco Catalyst 9606R chassis is hardware ready to support a wired switching capacity of up to 25.6 Tbps, with up to 6.4 Tbps of bandwidth per slot. Cisco Catalyst 9600 Series switches support granular port densities that fit diverse campus needs, including nonblocking 40 and 100 Gigabit Ethernet (GE) Quad Small Form-Factor Pluggable (QSFP+, QSFP28) and 1, 10, and 25 GE Small Form-Factor Pluggable Plus (SFP, SFP+, SFP28) and 10, 5, 2.5 and 1 Gigabit Ethernet (GE) and 100, 10 Megabit (Mbps) RJ45 copper ports. The switches also support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The Cisco Catalyst 9600 Series also supports foundational high-availability capabilities such as patching, Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.
Device Type: Switch - 72 ports - L3 - with Cisco Catalyst 9600 DNA Advantage Term License
Enclosure Type: Rack-mountable 8U
Subtype: 100 Gigabit Ethernet
Ports: 24 x 100 Gigabit Ethernet + 48 x 25 Gigabit Ethernet
Performance: Bandwidth per slot: 6.4 Tbps | Switching capacity: up to 9.6 Tbps | Forwarding performance: 3 Bbps
Routing Protocol: OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP
Features: DHCP support, NAT support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Shaped Round Robin (SRR), fan tray, Virtual Routing and Forwarding (VRF), Class of Service (CoS), side to side airflow, DiffServ Code Point (DSCP) support, Location ID Separation Protocol (LISP), Layer 3 VPN (L3VPN) support, Graceful Insertion and Removal (GIR) mode, Superior QoS, Committed Information Rate (CIR)
Compliant Standards: IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.4 in x 16.1 in x 13.9 in
Weight: 69.03 lbs
