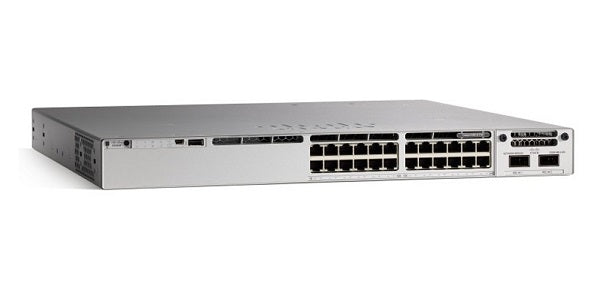

C9200-24T-E - Cisco Catalyst 9200 Switch 24 Port Data, Network Essentials - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: C9200-24T-E
Condition: REFURBISHED
Availability: Stock Available - May Be Limited
Cisco Catalyst 9200 Modular Uplink Switch with base Network Essentials license - Stackable, 24 ports data switch (24 x 10/100/1000 ports) - Supports optional 4 x 1G and 4 x 10G network modules (sold separately) for uplink ports - has 2 FRU power supply module slots (ships with 1 default power supply); the default primary AC power supply is PWR-C6-125WAC - there are 2 field-replaceable fans supporting redundancy - supports the StackWise-160 stacking option
Cisco 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides flexible downlink options with data, PoE+, UPOE, UPOE with mGig for Wi-Fi 6/6E, as well as open APIs of Cisco IOS XE and programmability of the UADP ASIC technology.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000
Performance: Stacking bandwidth: 160 Gbps | Switching bandwidth: 128 Gbps | Forwarding rate: 190.4 Mpps
Capacity: Virtual networks: 4 | IPv4 routing table entries: 4000 | IPv6 routing table entries: 2000 | Flexible NetFlow entries: 16000 | Packet buffer size: 6 MB | VLAN IDs: 4096 | Switched virtual interfaces (SVIs): 1000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features: ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power: AC 120/230 V (50-60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 13.8 in x 1.7 in
Weight: 11.02 lbs
