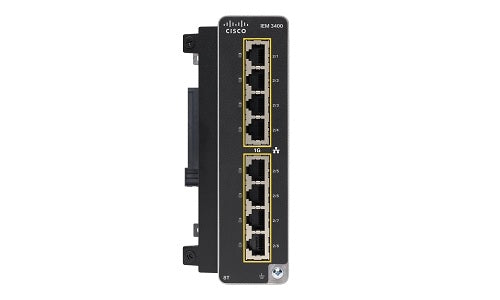

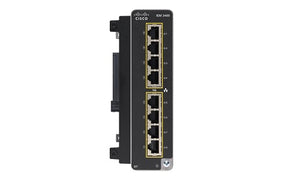

IEM-3400-8P - Cisco Catalyst IE3400 Expansion Module, 8 Port GE PoE/PoE+ - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: IEM-3400-8P
Condition: REFURBISHED
Stock Available - May Be Limited
Cisco Catalyst IE3400 Expansion Module - Rugged Series - Total 8 ports - 8 x 10/100/1000 RJ45 Copper (PoE+) Ports - 20 watt power consumption - 480 Watt PoE Budget - DIN rail mountable - for use with the Catalyst IE3400 series
The Cisco Catalyst IE3400 Rugged Series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3400 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
The IE3400 series (with expansion module) supports power budget of up to 480W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
Device Type: Expansion module
Form Factor: DIN rail mountable
Ports: Gigabit Ethernet (PoE+) x 8
Dimensions (WxDxH): 2.6 in x 5.3 in x 6 in
Weight: 2 lbs
Cabling Type: Ethernet 1000Base-T
Data Link Protocol: GigE
Capacity: IGMP groups: 1000 | VLAN IDs: 256 | Spanning Tree Protocol instances: 128 | ACL: 1500
MAC Address Table Size: 8000 entries
Network / Transport Protocol: TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
RAM: 4 GB
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
Power: DC 9.6 - 60 V
