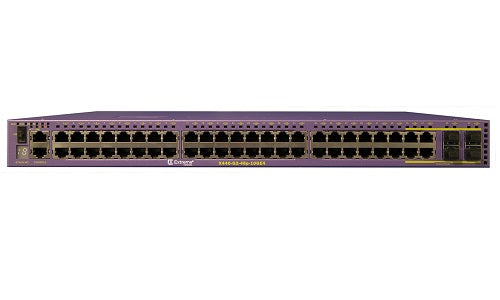

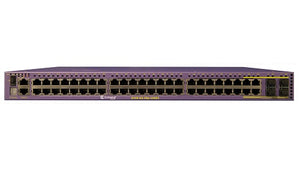

16535T - Extreme Networks X440-G2-48p-10GE4-TAA Edge Switch - Refurb'd
Manufacturer: Extreme Networks
Manufacturer Part #: 16535T
Model #: X440-G2-48p-10GE4-TAA
Condition: REFURBISHED
Availability: Call For Availability
ExtremeSwitching X440-G2 Scalable Edge Switch with ExtremeXOS Modular Operating System - TAA Compliant - 48 x 10/100/1000Base-T PoE+, 4 x SFP combo and 4 x 1GbE unpopulated SFP upgradable to 10GbE SFP+ ports - 1 Fixed AC PSU - ExtremeXOS Edge license - rack-mountable
The ExtremeSwitching X440-G2 series is a scalable cost-effective family of edge switches powered by Extreme Networks ExtremeXOS, a highly resilient OS providing continuous uptime, manageability and operational efficiency. The X440-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+ support and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.
The X440-G2 Series easy-to-use, yet powerful, management options include ExtremeCloud IQ, Extreme Management Center and Extreme Cloud Appliance for either cloud-based or on-premise oversight and configuration. The X440-G2 also supports role-based policies and Fabric Attach for secure, automated access to specific network resources and applications.
| Device Type | Switch - 48 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x shared SFP + 6 x combo SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 176 Gbps ¦ Frame rate: 130.9 Mpps |
| Capacity | MAC addresses: 16000 ¦ Longest prefix match (LPM) entries (IPv4): 480 ¦ IPv4 hosts: 1000 ¦ Longest prefix match (LPM) entries (IPv6): 240 ¦ User-created VLAN/VMANs: 4092 ¦ Policy profiles: 63 ¦ IPv4 rules: 256 ¦ L2 rules: 184 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Trunking, DoS attack prevention, IPv6 support, half duplex mode, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, PoE+, IPv4 support, Energy Efficient Ethernet, cloud managed, 1.5MB packet buffer, Audio Video Bridging (AVB) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 14.5 in x 1.7 in |
| Weight | 14.55 lbs |
