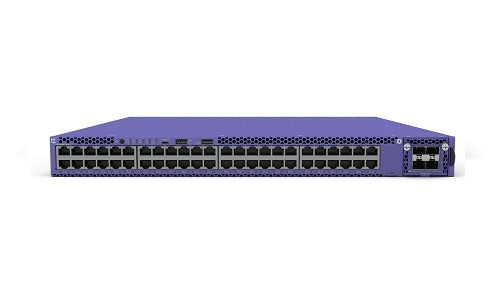

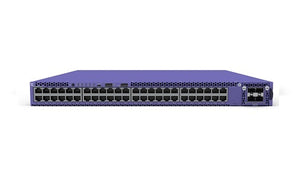

VSP4900-48P-B1-4XE - Extreme Networks VSP 4900 Switch - Refurb'd
| Manufacturer: | Extreme Networks |
| Manufacturer Part #: | VSP4900-48P-B1-4XE |
| Condition: | REFURBISHED |
| Availability: | Stock Available |
ExtremeSwitching Virtual Services Platform 4900-48P Switch - with 48 x 10/100/1000Base-T full/half duplex 802.3at PoE (30W) MACsec-capable ports - includes 3 fan modules, 1 VIM5-4XE module and 1 PSU 1100w Front-to-Back airflow
| Product Description | Extreme Networks Virtual Services Platform 4900 - Bundle - switch - 48 ports - managed - rack-mountable - with VIM5-4XE module |
| Device Type | Switch - 48 ports - L3 - managed - with VIM5-4XE module |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Switching capacity: 196 Gbps ¦ Frame rate: 145.8 Mpps |
| Capacity | VLANs supported: 4059 ¦ MSTP instances: 12 ¦ Links per MLT/LACP group: 8 ¦ ARP entries: 32000 ¦ IPv4 routes: 15488 ¦ RIP interfaces: 200 ¦ OSPF interfaces: 500 ¦ BGP peers: 256 ¦ VRF instances: 256 ¦ IPv6 neighbor table entries: 8000 ¦ IPv6 routes: 7744 ¦ RIPng interfaces: 48 ¦ OSPFv3 interfaces: 500 ¦ BGPv6 peers: 256 ¦ IGMP interfaces: 4059 ¦ PIM active interfaces: 128 ¦ MLD interfaces: 4059 ¦ IP multicast streams: 6000 ¦ MAC addresses: 40000 ¦ L2 virtual service networks: 4059 ¦ L3 virtual service networks: 256 ¦ IP shortcut routes (IPv4): 15488 ¦ IP shortcut routes (IPv6): 7488 ¦ L2 multicast virtual service networks: 2000 ¦ L3 multicast virtual service networks: 256 |
| MAC Address Table Size | 80K entries |
| Routing Protocol | RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, RIPng, BGP+ |
| Features | Full duplex capability, auto-negotiation, ARP support, VLAN support, port mirroring, Deep Packet Inspection (DPI), sFlow, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), front to back airflow, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), IPFIX, 3 fans, Shortest Path Bridging (SPB), Virtual Extensible LAN (VXLAN), port-based VLAN, support Virtual Service Networks (VSN), support IP Shortcut Routing, Rapid Reconfiguration of Spanning Tree (RSTP), Metallic Loop Testing for subscriber lines (MLT), Media Access Control Security (MACsec), LRM optics support |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1aq, IEEE 802.3bm, IEEE 802.1Qbp, IEEE 802.1Qcj |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 19.2 in x 1.7 in |
| System Requirements | VSP Operating System Software (VOSS) |
