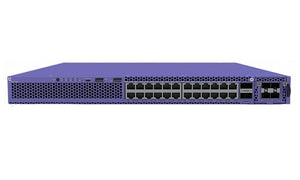

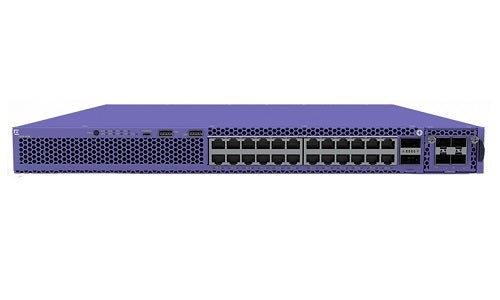

X465-24MU-24W-B1 - Extreme Networks X465 Stackable Edge Switch, 1100w PSU Bundle - Refurb'd
Manufacturer: Extreme Networks
Manufacturer Part #: X465-24MU-24W-B1
Condition: REFURBISHED
Availability: Call For Availability
ExtremeSwitching X465 Premium Stackable Edge/Aggregation Switch - 24 x 100Mb/1Gb/2.5Gb/5Gb 802.3bt Type 3 (60 watt) PoE ports and 24 x 10/100/1000Mb full / half-duplex 802.3 Type 4 (90 watt) MACsec-capable ports - Includes: 3 x fan modules, 1 x VIM5 slot and a 1100W AC PSU FB (10941) - EXOS Advanced Edge license, Insight Architecture-ready
The ExtremeSwitching X465 Series is a premium stackable switch family providing high-performance, convergence-ready, resilient and secure Gigabit and multi-Gigabit Ethernet connectivity. Powered by ExtremeXOS, the X465 Series offers sophisticated routing and switching, high-speed stacking, modular uplink options, advanced PoE, and comprehensive security. This makes the X465 Series an ideal choice for high-end wiring closet and network edge deployments.
| Device Type | Switch - 48 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G/5GBase-T (UPOE) + 24 x 10/100/1000 (UPOE) + 2 x 40 Gigabit QSFP+ (stacking) |
| Power Over Ethernet (PoE) | UPOE |
| PoE Budget | 768 W |
| Performance | Aggregate switching bandwidth: 696 Gbps ¦ Stacking bandwidth: 517.9 Mpps |
| MAC Address Table Size | 272K entries |
| Routing Protocol | OSPF, RIP, BGP, PIM-SM, static IP routing |
| Remote Management Protocol | CLI |
| Features | Routing, MPLS support, sFlow, redundant hot swappable fans, Virtual Private LAN Service (VPLS), VXLAN tunnel endpoints (VTEP) support, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), 3 fan trays, non-blocking traffic forwarding, Media Access Control Security (MACsec) |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, ITU-T Y.1731, IEEE 802.3bm, IEEE 802.3bz, IEEE 802.3bt |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 19.2 in x 1.7 in |
| Weight | 18.45 lbs |
