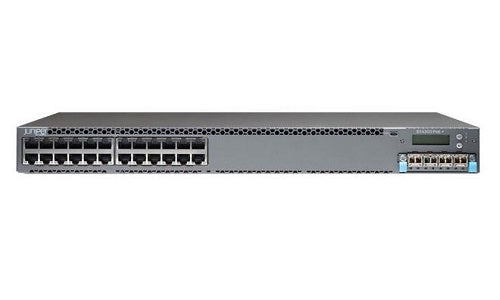

EX4300-24T-TAA - Juniper EX4300 Ethernet Switch - New
Manufacturer: Juniper Networks
Manufacturer Part #: EX4300-24T-TAA
Condition: NEW
Availability: End Of Life - Inventory May Be Limited
The EX4300 line of Ethernet switches delivers the performance, flexibility, and scale required for both campus and data center Gigabit Ethernet (GbE) access switch environments. Whether deployed in a Virtual Chassis configuration or as a satellite device in a Juniper Networks Junos Fusion fabric architecture, the EX4300 delivers the operational simplicity and higher logical scale that businesses demand. Combining compact, pay-as-you-grow economics and low power and cooling with the performance, availability, and port densities of chassis-based platforms, the EX4300 enables businesses to deploy with speed and agility to increase revenue and improve productivity.
| Product Description | Juniper TD Sourcing EX Series EX4300-24T - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 4 x 40 Gigabit QSFP+ |
| Performance | Switching capacity: 448 Gbps ¦ Throughput: 333 Mpps |
| Capacity | Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 510 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ IPv4 routes: 32000 ¦ Maximum of neighboring networks: 20000 ¦ IPv6 routes: 18000 |
| MAC Address Table Size | 64K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, RIPng, MPLS, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI |
| Features | Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, ASIC VPN, SNTP support, DDos attack prevention, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Virtual Chassis technology, Graceful Route Engine Switchover (GRES), front to back airflow, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, Deficit Weighted Round Robin (DWRR), hot swappable dual fans, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronization, redundant hot swappable fans, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, Multicast Source Discovery Protocol (MSDP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.3ba, ITU-T G.8032 |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.4 in x 16.4 in x 1.7 in |
| Weight | 16.09 lbs |
