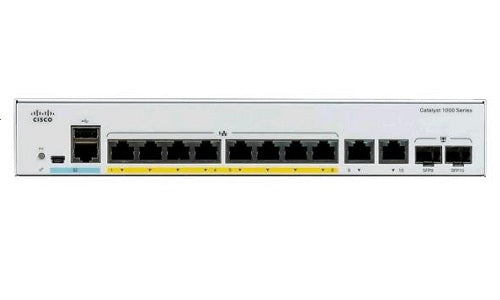

C1000-8T-2G-L - Cisco Catalyst 1000 Switch, 8 Port Data, 1G Fixed Uplinks - New
Manufacturer: Cisco
Manufacturer Part #: C1000-8T-2G-L
Condition: NEW
Availability: Stock Available - May Be Limited
Cisco Catalyst 1000 Switch - Fixed Managed - L2 - 8 x 10/100/1000 Ethernet and 2 x 1Gig SFP / RJ-45 Combo Uplink Ports - includes a single fixed power supply - fanless model - rack-mountable
Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
Device Type: Switch - 8 ports - managed
Enclosure Type: Rack-mountable
Subtype: Gigabit Ethernet
Ports: 8 x 10/100/1000 + 2 x combo Gigabit SFP (uplink)
Performance: Forwarding bandwidth: 10 Gbps | Switching bandwidth: 20 Gbps | Forwarding rate (64-byte L3 packets): 14.88 Mpps
Capacity: Unicast MAC addresses: 15360 | IPv4 unicast direct routes: 542 | IPv4 unicast indirect routes: 256 | IPv6 unicast direct routes: 414 | IPv6 unicast indirect routes: 128 | IPv4 routes (static): 16 | IPv6 routes (static): 16 | IPv4 routes (Multicast): 1024 | IPv6 groups (Multicast): 1024 | IPv4/MAC security ACEs: 600 | IPv6 security ACEs: 600 | Active VLANs: 256 | VLAN IDs: 4094 | STP instances: 64 | SPAN sessions: 4 | MTU-L3 packet: 9198 byte
Jumbo Frame Support: 10240 bytes
Routing Protocol: IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Features: BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Power: AC 120/230 V (50 - 60 Hz)
Dimensions (WxDxH): 10.6 in x 7.3 in x 1.7 in
