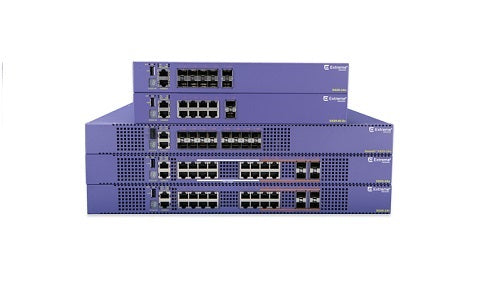

X620-16t-BF TAA - Extreme Networks 10Gb Edge Ethernet Switch - 17402G - New
| Manufacturer: | Extreme Networks |
| Manufacturer Part #: | X620-16t-BF TAA |
| Condition: | NEW |
| Availability: | Call For Availability |
ExtremeSwitching X620 Compact 10Gb Ethernet Switch - 16 x 100Mb/1Gb/10GBase-T ports with EEE - 2 x 300W PSU - 1 Fan Module, back-to-front airflow - ExtremeXOS Edge License
| Product Description | Extreme Networks ExtremeSwitching X620 X620-16t-BF TAA - switch - 16 ports - managed - rack-mountable |
| Device Type | Switch - 16 ports - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10GBase-T + 4 x shared 10GBase-T + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 320 Gbps ¦ Switching capacity: 238 Mpps ¦ Latency (SFP+): 900 ns ¦ Latency (10 Gbps): 2.4 µs |
| Capacity | Longest prefix match (LPM) entries (IPv4): 480 ¦ IPv4 hosts: 1500 ¦ Longest prefix match (LPM) entries (IPv6): 240 ¦ IPv6 hosts: 1500 ¦ IP multicast groups: 256 ¦ IP multicast entries: 1500 ¦ User-created VLAN/VMANs: 4092 ¦ Load-sharing groups: 128 ¦ ACL entries (ingress): 2048 ¦ ACL entries (egress): 512 ¦ QoS priority queues per port: 8 ¦ Policy profiles: 63 ¦ Policy route rules: 440 ¦ IPv4 routes: 256 ¦ L2 rules: 184 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | CLI |
| Features | VLAN support, full duplex mode, Data Center Bridging Exchange (DCBX) support, Access Control List (ACL) support, back to front airflow, 2MB packet buffer, hot swappable fan, Class of Service (CoS), Priority-Based Flow Control (PFC), 1 fan, Energy-Efficient Ethernet (EEE), Enhanced transmission selection (ETS) |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az |
| Power | AC 120/230 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17 in x 17.4 in x 1.7 in |
