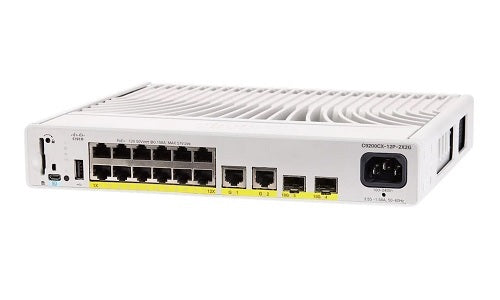

C9200CX-12P-2X2G-E - Cisco Catalyst 9200CX Compact Switch 12 Port PoE+, Network Essentials - New
Manufacturer: Cisco
Manufacturer Part #: C9200CX-12P-2X2G-E
Condition: NEW
Availability: Stock Available - May Be Limited
Cisco Catalyst 9200CX Compact Switch with base Network Essentials license - 12 ports PoE+ switch (12 x 1Gig ports, with 2 x 1G copper and 2 x 10G SFP+ fixed uplinks) - 315 watt AC internal fixed power supply - available PoE budget of 240 watt - fanless - multiple mounting optons available - stacking is not available on the C9200CX switches
Cisco 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides flexible downlink options with data, PoE+, UPOE, UPOE with mGig for Wi-Fi 6/6E, as well as open APIs of Cisco IOS XE and programmability of the UADP ASIC technology.
Device Type: Switch - 12 ports - L3 - managed
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE): PoE+
PoE Budget: 240 W
Performance: Switching capacity: 120 Gbps | Forwarding rate: 95.23 Mpps | Packet buffer size: 6 MB
Capacity: Virtual networks: 16 | IPv4 routes: 14000 | Direct IPv4 routes: 10000 | Indirect IPv4 routes: 4000 | IPv4 routing entries: 4000 | IPv6 routing entries: 2000 | Multicast scale: 1000 | QoS scale entries: 1000 | ACL scale entries: 1600 | Flexible NetFlow entries: 16000 | VLAN IDs: 4096 | PVST instances: 128 | STP Virtual Ports for PVST: 13000 | STP Virtual Ports for MST: 13000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG
Features: Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
Power: AC 100-240 V (50/60 Hz)
Dimensions (WxDxH): 10.6 in x 9.6 in x 1.7 in
Weight: 6.59 lbs
