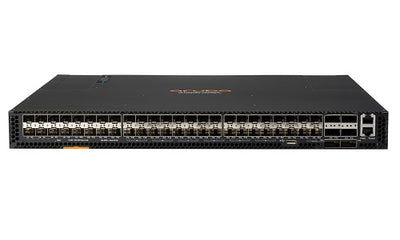

JL581A - HP Aruba 8320 48p 1G/10GBase-T and 6p 40G QSFP+ Switch Bundle, 48 Port - New
Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL581A
Condition: NEW
Availability: Stock Available - May Be Limited
HPE Aruba 8320 Switch - Layer 3 - TAA Compliant - managed - 48 x 1 Gigabit / 10 Gigabit Ethernet and 6 x 40 Gigabit QSFP+ ports - Includes: 2 x PSU, 5 x Fan, 1 x Rack Mount Kit
The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba CX 8320 campus core and aggregation switch series is a game-changing solution offering a flexible and innovative approach to dealing with the demands of the mobile, cloud and IoT era. The 8320 also serves as a top of rack (ToR) switch for data centers needing 10GbE connectivity to servers and 40GbE to the spine.
The 8320 switch series provides industry-leading line rate 1/10GbE (SFP/SFP+ and 10GBASE-T) and 40GbE connectivity in a compact 1U form factor. It provides up to 2.5 Tbps of switching capacity with redundant power and fans combined with Aruba Virtual Switching Extension (VSX) for a high availability solution ideal for enterprise campus and data center deployments.
| Device Type | Switch - 48 ports - L3 - managed - with X472 5 Fans 2 Power Supply |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit Ethernet + 6 x 40 Gigabit QSFP+ |
| Performance | Switching capacity: 2.5 Tbps / Forwarding performance: 1.905 Mpps |
| Capacity | Virtual interfaces (VLANs) per port for 802.1q: 4096 |
| MAC Address Table Size | 14K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, IGMPv2, IGMP, VRRP, IGMPv3, GRE, static IPv6 routing, ECMP |
| Remote Management Protocol | SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP |
| Features | VPN support, IPv6 support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Link Aggregation Control Protocol (LACP), redundant hot swappable fans, packet storm protection, Strict Priority (SP), Loopback, Bridge protocol data unit (BPDU), Multi-Chassis Link Aggregation (MLAG), Protocol Independent Multicast (PIM) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1t, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3ba, IEEE 802.1AX |
| Power | AC 120/230 V (50/65 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 18.6 in x 17.4 in x 1.7 in |
| Weight | 20.94 lbs |
