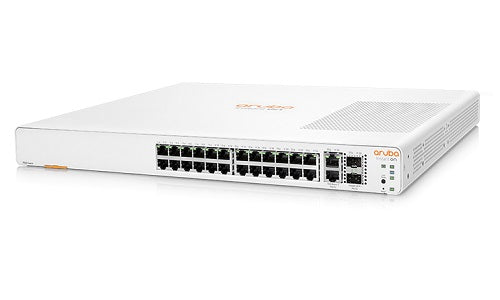

JL806A - HP Instant On 1960 24G 2XGT 2SFP+ Switch - Refurb'd
Manufacturer: HPE / Hewlett Packard
Manufacturer Part #: JL806A
Condition: REFURBISHED
Availability: Stock Available - May Be Limited
HPE Instant On 1960 Smart Managed Stackable Switch - 24 Port - 24 x 10/100/1000 Mbps with 2 x 10 Gigabit SFP+ and 2 x 10GBase-T Uplink Ports - Fanless - Internal power supply - No extra licensing or subscription fees required - desktop and rack-mountable, includes 2-post rack kit
Plug-and-play switches that work together with Instant On APs right out of the box. This model is compatible with AP15 Instant On Access Points
The Aruba Instant On 1960 Smart-managed layer 2+ Ethernet switch series is an easy-to-use and affordable wired solution for networks supporting IT, mobile and cloud applications.
Aruba Instant On 1960 Switches are advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to business grows, making adding more employees, devices and applications simple. Aruba Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance.
True Stacking allows for redundancy while making it simple to configure, manage, and troubleshoot multiple switches as a single entity
Perfect for training centers, healthcare facilities and tech start-ups
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T |
| Performance | Throughput: 95 Mpps ¦ Switching capacity: 128 Gbps ¦ Latency (100 Mbps): 4.4 µs ¦ Latency (1 Gbps): 2.2 µs ¦ Latency (10 Gbps): 1.1 µs |
| Capacity | MAC address entries: 16000 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Features | Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), fanless, Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 17.4 in x 13.8 in x 1.7 in |
| Weight | 8.6 lbs |
