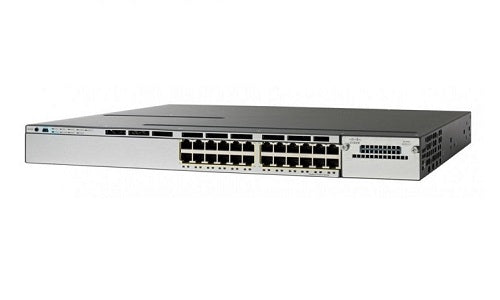

WS-C3850-24XU-L - Cisco Catalyst 3850 Switch 24 Port mGig UPoE, LAN Base - Refurb'd
Manufacturer: Cisco
Manufacturer Part #: WS-C3850-24XU-L
Condition: REFURBISHED
Availability: End of Life - Stock May Be Limited
Last Day Of Support: October 31, 2025
Replacement: C9300-24U-E
Cisco Catalyst 3850-24XU Switch - LAN Base feature set - 24 ports - Stackable, 24 x 100Mbps/1/2.5/5/10 Gbps UPoE Ethernet ports - PoE Budget of 580 watt - Optional network modules for uplink ports - 1100W AC power supply - 1RU, rack-mountable
The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology.
The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, and redundant fans and power supplies.
Device Type: Switch - 24 ports - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: 10 Gigabit Ethernet
Ports: 24 x 1/2.5/5/10GBase-T (UPOE)
Power Over Ethernet (PoE): UPOE
PoE Budget: 580 W
Performance: Switching capacity: 640 Gbps | Stacking bandwidth: 480 Gbps | Forwarding rate: 500 Mbps
Capacity: IPv4 routes: 24000 | NetFlow entries: 48000 | VLAN IDs: 4000 | Switched virtual interfaces (SVIs): 1000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD, URPF, MSTP
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, NTP
Features: ARP support, Intrusion Detection System (IDS), IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Wireless Intrusion Prevention System (WIPS), Class of Service (CoS), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, radio resource management (RRM), IP source guard, Weighted Tail Drop (WTD), Bridge protocol data unit (BPDU), Control plane protection (CoPP), Spanning-tree Root Guard (STRG), RA guard, Energy-Efficient Ethernet (EEE), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), VLAN Trunking Protocol (VTP) v.3, MQC, Audio Video Bridging (AVB), OBFL, Committed Information Rate (CIR), Media Access Control Security (MACsec)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.11, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1as, IEEE 802.3at, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.1BA, IEEE 802.3bz
Power: AC 120/230 V (50/60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 19.2 in x 1.8 in
Weight: 17.64 lbs
