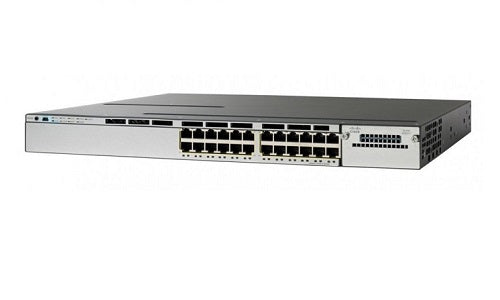

WS-C3850-24XU-S - Cisco Catalyst 3850 Switch 24 Port mGig UPoE, IP Base - New
Manufacturer: Cisco
Manufacturer Part #: WS-C3850-24XU-S
Condition: NEW
Availability: End of Life - Stock May Be Limited
Last Day Of Support: October 31, 2025
Replacement: C9300-24U-A
Cisco Catalyst 3850-24XU Switch - IP Base feature set - 24 ports - Stackable, 24 x 100Mbps/1/2.5/5/10 Gbps UPoE Ethernet ports - PoE Budget of 580 watt - Optional network modules for uplink ports - 1100W AC power supply - 1RU, rack-mountable
The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology.
The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power Over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, and redundant fans and power supplies.
Device Type: Switch - 24 ports - L3 - managed - stackable
Enclosure Type: Rack-mountable 1U
Subtype: Gigabit Ethernet
Ports: 24 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE): UPOE
PoE Budget: 580 W
Performance: Switching capacity: 92 Gbps | Stacking bandwidth: 480 Gbps | Forwarding performance (64-byte packet size): 460 Mpps
Capacity: IPv4 routes: 24000 | NetFlow entries: 24000 | Switched virtual interfaces (SVIs): 1000 | Virtual interfaces (VLANs): 4000
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9198 bytes
Routing Protocol: RIP-1, RIP-2, EIGRP, RIPng
Remote Management Protocol: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Features: DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Power: AC 120/230 V (50 - 60 Hz)
Power Redundancy: Optional
Dimensions (WxDxH): 17.5 in x 19.2 in x 1.8 in
Weight: 17.64 lbs
